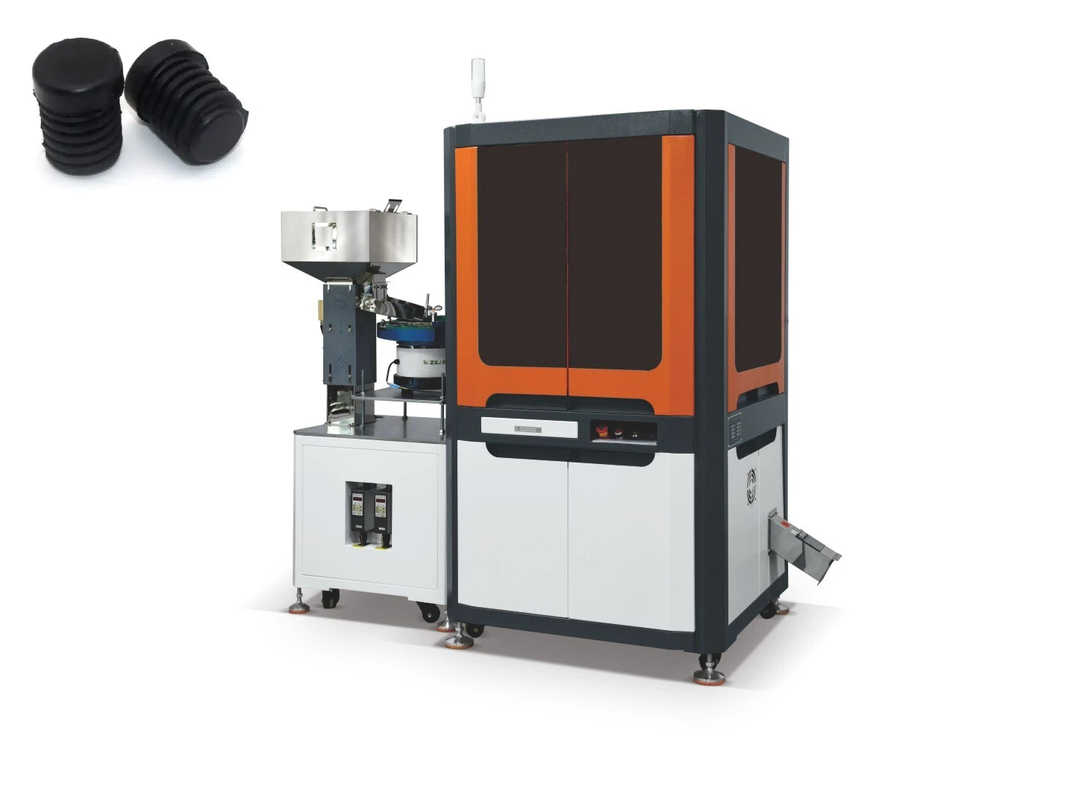

CCD High Speed Optical Visual Inspection Machine For Rubber Grommet

Name: CCD High Speed Optical Visual Inspection Machine For Rubber Grommet
Brand: Dongguan Anxiang Intelligence Equipment Co., Ltd
SKU: SquT
Availability: InStock

Product Details

Place of Origin: Dongguan,China

Brand Name: DGAX

Certification: CE

Model Number: SquT

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Contact Us

Packaging Details: Foam inner+ outside wooden case

Delivery Time: 45-60days

Payment Terms: T/T

Supply Ability: 100sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                CCD visual inspection machine, Rubber Grommet visual inspection machine, High Speed visual inspection machine


Function:	Products Defect Inspection	Application:	Rubbers, Plastics, PTFE, Hardware
Warranty:	1 Year	Core Components:	Servo Motor, PLC, Cylinder
Power Supply:	AC220V±10% 50HZ/60HZ	Efficiency:	Max 36,000pcs/h (Depends On Size And Material )
Volume:	Feeding Device 300L	Quantity Of Camera:	Depends On Detection Requirement

Function:	Products Defect Inspection
Application:	Rubbers, Plastics, PTFE, Hardware
Warranty:	1 Year
Core Components:	Servo Motor, PLC, Cylinder
Power Supply:	AC220V±10% 50HZ/60HZ
Efficiency:	Max 36,000pcs/h (Depends On Size And Material )
Volume:	Feeding Device 300L
Quantity Of Camera:	Depends On Detection Requirement

Product Description

CCD high speed Optical visual inspection machine for rubber grommet

(100% Automated Defect Detection for Sealing Components)

Rubber-Specific Inspection Capabilities

✔ Material-Adaptive Imaging – Specialized lighting for black/colored rubber (EPDM, NBR, silicone)
✔ Elasticity Compensation – AI accounts for deformation during handling (±0.02mm accuracy)
✔ Critical Sealing Zone Focus – Enhanced detection at:
→ Lip edges (micro-tears ≥25μm)
→ Compression grooves (profile deviations >5%)
→ Mold parting lines (flash ≥0.1mm)

Technical Highlights

Optics: 16MP polarized CCD + coaxial illumination (glare suppression for glossy rubber)
Throughput: 1,500 pcs/min (with anti-static conveyor)
Defect Library: Pre-trained models for common rubber defects (flow lines, scorch marks, under-cure)
Compliance: Meets ASTM D2000 and SAE J200 material standards

Targeted Rubber Defects

Defect Type	Detection Sensitivity	Impact
Voids/Inclusions	≥50μm	Seal failure
Dimensional Shrinkage	±0.07mm	Fit issues
Surface Cracks	0.05mm depth	Durability
Mold Contamination	Foreign material ≥100μm	Compliance

Industry-Specific Solutions

Automotive: Adhesion check between rubber/metal inserts (hybrid grommets)
HVAC: Detection of foam cell ruptures in sponge rubber variants
Medical: USP Class VI compliance validation

Why Specialized for Rubber?

→ Non-Contact Inspection: Prevents deformation of soft materials
→ Dynamic Thresholding: Auto-adjusts for batch-to-batch compound variations
→ Aging Resistance Test: Optional UV exposure chamber for predictive lifespan analysis
