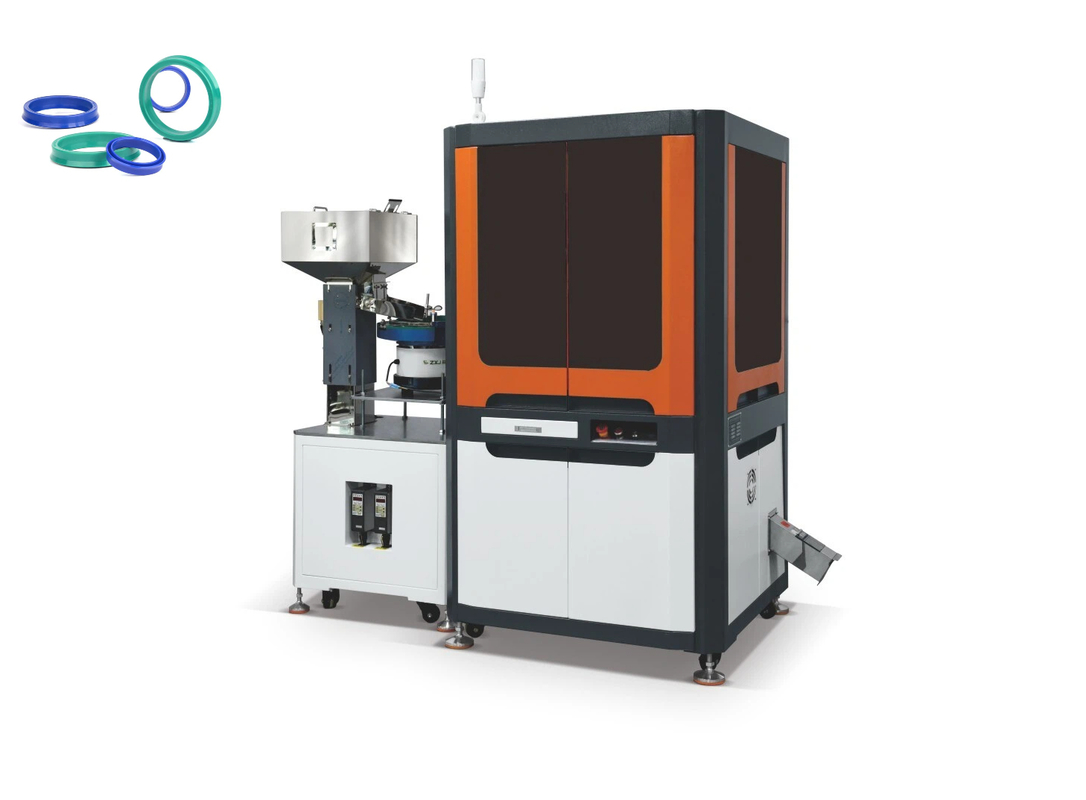

Fast Speed Intelligent Visual Inspection Machine For Cup Seal Detection

Name: Fast Speed Intelligent Visual Inspection Machine For Cup Seal Detection
Brand: Dongguan Anxiang Intelligence Equipment Co., Ltd
SKU: SquT
Availability: InStock

Product Details

Place of Origin: Dongguan,China

Brand Name: DGAX

Certification: CE

Model Number: SquT

Document: WIRT inspection machine_EN.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Contact Us

Packaging Details: Foam inner+ outside wooden case

Delivery Time: 45-60days

Payment Terms: T/T

Supply Ability: 100sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                Fast Speed Visual Inspection Machine, Intelligent Visual Inspection Machine, Cup Seal Detection Visual Inspection Machine


Function:	Products Appearance Defect Inspection	Application:	Rubbers, Plastics, PTFE, Hardware,cup Seal
Warranty:	1 Year	Core Components:	Servo Motor, PLC, Cylinder
Power Supply:	AC220V±10% 50HZ/60HZ	Efficiency:	Max 36,000pcs/h (Depends On Size And Material )
Volume:	Feeding Device 300L	Quantity Of Camera:	Depends On Detection Requirement

Function:	Products Appearance Defect Inspection
Application:	Rubbers, Plastics, PTFE, Hardware,cup Seal
Warranty:	1 Year
Core Components:	Servo Motor, PLC, Cylinder
Power Supply:	AC220V±10% 50HZ/60HZ
Efficiency:	Max 36,000pcs/h (Depends On Size And Material )
Volume:	Feeding Device 300L
Quantity Of Camera:	Depends On Detection Requirement

Product Description

Fast speed intelligent visual inspection machine for Cup seal detection

Key Features

✔ Ultra-Fast Inspection – 1,500+ seals/min with ±5μm accuracy
✔ Multi-Angle Defect Recognition – 360° imaging with rotary staging
✔ AI-Powered Classification – Detects:
→ Critical defects (cracks, tears >30μm)
→ Dimensional errors (ID/OD ±0.05mm, lip thickness variations)
→ Surface flaws (scratches, contamination, molding defects)

Technical Specifications

Optical System:
- 20MP global shutter CCD + telecentric lens
- 3D laser profilometer (for lip geometry analysis)
Lighting: Multi-spectral LED array (diffused + coaxial)
Throughput: 25 pcs/second with pneumatic sorting
Software: Deep learning algorithm (≤0.2% false rejects)

Target Defects

Defect Type	Detection Capability	Impact
Lip Deformation	>0.1mm deviation	Seal failure
Micro-Cracks	≥20μm length	Leak risk
Flash Material	≥0.05mm width	Assembly issues
Contaminants	≥50μm particles	Contamination risk

Industry Applications

Hydraulic/Pneumatic Seals – Ensures leak-proof performance
Automotive Fuel Systems – IATF 16949 compliant reporting
Medical Device Seals – ISO 13485 validation support

Smart Functions

→ Self-Calibration – Automatic compensation for material/color changes
→ Digital Twin – Compares with CAD models (GD&T analysis)
→ Cloud Analytics – Real-time OEE/defect trend monitoring
