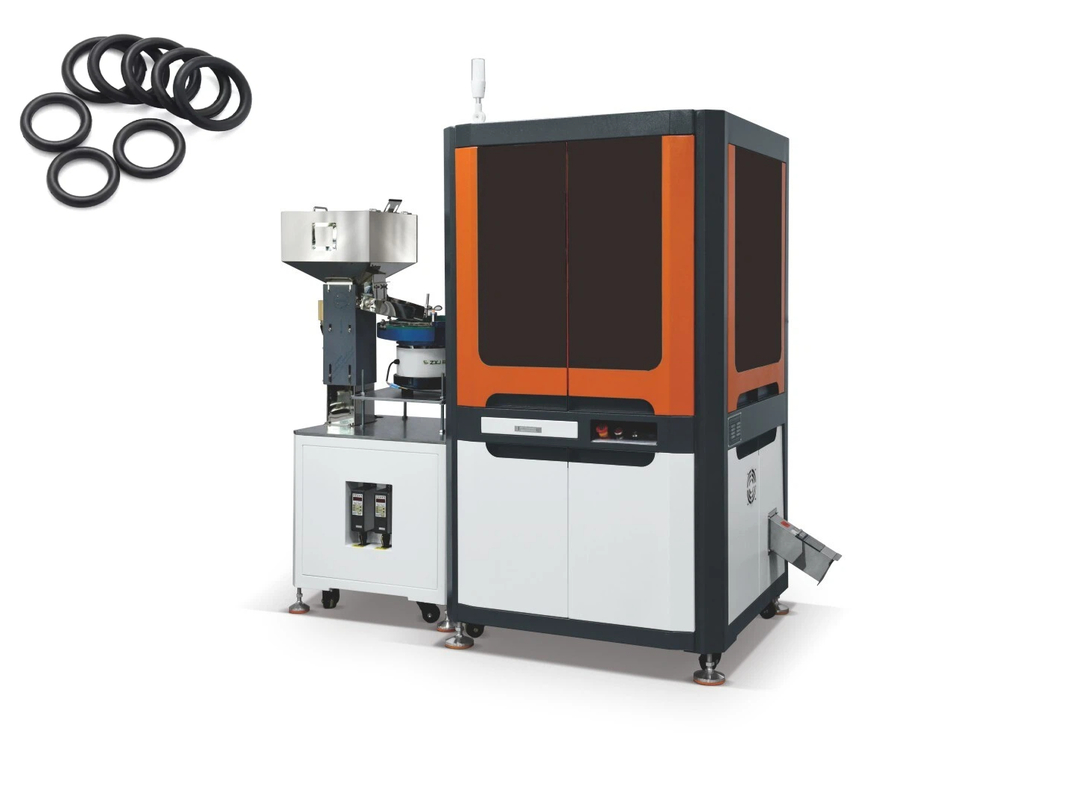

High Speed High Accuracy Optical Visual Inspection Machine For O Ring

Name: High Speed High Accuracy Optical Visual Inspection Machine For O Ring
Brand: Dongguan Anxiang Intelligence Equipment Co., Ltd
SKU: SquT
Availability: InStock

Product Details

Place of Origin: Dongguan,China

Brand Name: DGAX

Certification: CE

Model Number: SquT

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Contact Us

Packaging Details: Foam inner+ outside wooden case

Delivery Time: 45-60days

Payment Terms: T/T

Supply Ability: 100sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                Optical Visual Inspection Machine, High Accuracy visual inspection machine, O Ring visual inspection machine


Function:	Products Appearance Defect Inspection	Application:	Rubbers, Plastics, PTFE, Hardware
Warranty:	1 Year	Core Components:	Servo Motor, PLC, Cylinder
Power Supply:	AC220V±10% 50HZ/60HZ	Efficiency:	Max 36,000pcs/h (Depends On Size And Material )
Volume:	Feeding Device 300L	Quantity Of Camera:	Depends On Detection Requirement

Function:	Products Appearance Defect Inspection
Application:	Rubbers, Plastics, PTFE, Hardware
Warranty:	1 Year
Core Components:	Servo Motor, PLC, Cylinder
Power Supply:	AC220V±10% 50HZ/60HZ
Efficiency:	Max 36,000pcs/h (Depends On Size And Material )
Volume:	Feeding Device 300L
Quantity Of Camera:	Depends On Detection Requirement

Product Description

High speed high accuracy optical visual inspection machine for O ring

Key Features

✔ Ultra-Precise Measurement – ±2μm accuracy for ID/OD/cross-section (meets ISO 3601-3 standards)
✔ Lightning-Fast Inspection – 1,800+ O-rings/hour (with auto-loading system)
✔ Multi-Defect Detection – Simultaneously checks:
→ Surface defects (cracks ≥20μm, bubbles, inclusions)
→ Dimensional errors (ovality >0.5%, diameter tolerances ±0.03mm)
→ Contamination (embedded particles ≥15μm)

Advanced Optical System

Dual 16MP Cameras – Top/bottom synchronized inspection
Telecentric Lenses – Eliminates perspective distortion
3D Laser Profilometer – Measures cross-section thickness (±1μm)
Adaptive Lighting – 8-channel RGB-IR for all rubber colors (black/red/transparent)

Smart Defect Classification

Defect Type	Detection Limit	Rejection Criteria
Critical Cracks	≥0.02mm depth	Automatic NG binning
Dimensional NG	Beyond ±0.05mm	SPC alarm
Surface Contamination	≥30μm particles	Customer-definable

Industry 4.0 Ready

→ AI Self-Learning – Improves recognition for new rubber compounds
→ Digital Twin – Compares with CAD models in real-time
→ OEE Dashboard – Tracks yield, downtime, defect trends

Material Compatibility

All Rubber Types: NBR, FKM, EPDM, Silicone (Shore A 30-90)
Special Applications: Metal-insert O-rings, X-ring profiles
