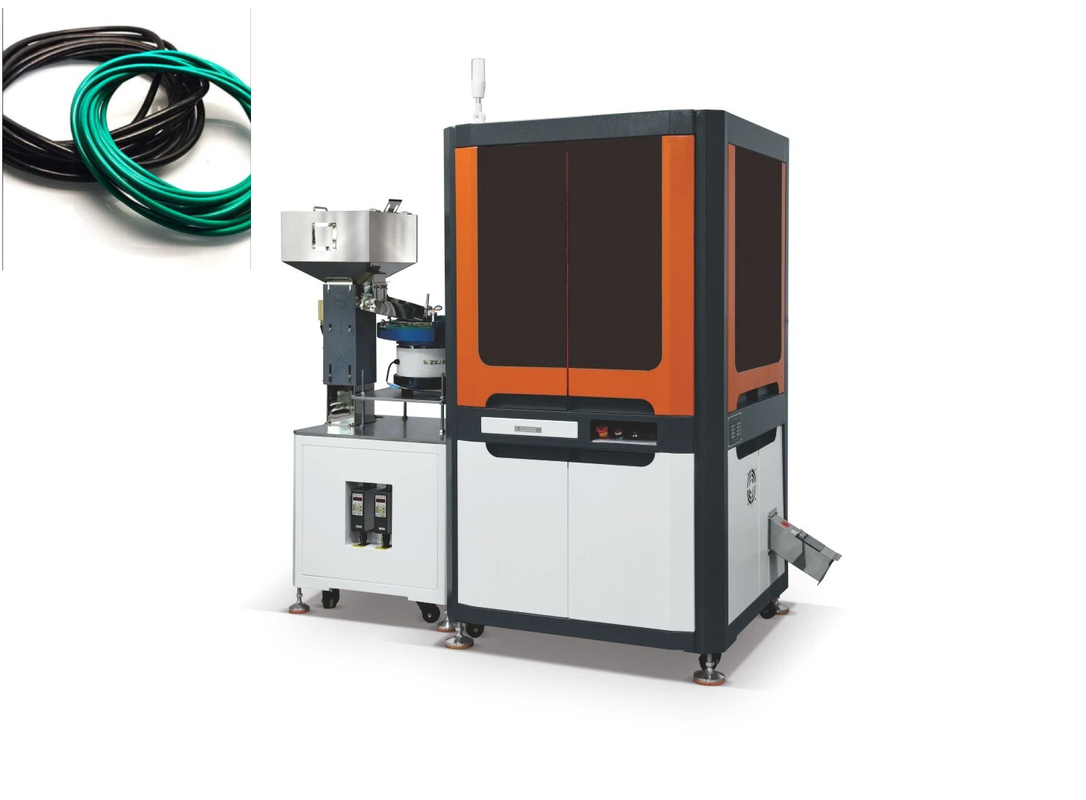

Intelligent Visual Inspection Machine To Check Close Crack Detection

Name: Intelligent Visual Inspection Machine To Check Close Crack Detection
Brand: Dongguan Anxiang Intelligence Equipment Co., Ltd
SKU: StreT
Availability: InStock

Product Details

Place of Origin: Dongguan,China

Brand Name: DGAX

Certification: CE

Model Number: StreT

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Contact Us

Packaging Details: Foam inner+ exported wooden case

Delivery Time: 45-60days

Payment Terms: T/T

Supply Ability: 100sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                Intelligent Visual Inspection Machine, Check Close Crack Detection Machine


Function:	Products Appearance Defect Inspection	Application:	Rubbers, Plastics,Cable...
Warranty:	1 Year	Core Components:	AI Intelligence,Servo Motor, PLC, Cylinder,CCD Camera,
Power Supply:	AC220V±10% 50HZ/60HZ	Efficiency:	100pcs/h (Depends On Size And Material )
Volume:	Feeding Device 300L	Quantity Of Camera:	Depends On Detection Requirement

Function:	Products Appearance Defect Inspection
Application:	Rubbers, Plastics,Cable...
Warranty:	1 Year
Core Components:	AI Intelligence,Servo Motor, PLC, Cylinder,CCD Camera,
Power Supply:	AC220V±10% 50HZ/60HZ
Efficiency:	100pcs/h (Depends On Size And Material )
Volume:	Feeding Device 300L
Quantity Of Camera:	Depends On Detection Requirement

Product Description

Intelligent visual inspection machine to check close crack detection

Key Features

✔ Sub-Micron Crack Detection – Identifies closed/hairline cracks as fine as 5μm
✔ Multi-Spectral Imaging – Combines UV fluorescence + polarized light + thermal imaging
✔ AI-Powered Analysis – Distinguishes:
→ Surface-breaking cracks (even with no visible gap)
→ Subsurface defects (via thermal diffusion analysis)
→ Stress concentration zones (predictive failure points)

Technical Specifications

Optical Resolution: 25MP camera + 10X optical zoom
Detection Sensitivity:
- Surface cracks: ≥5μm width
- Subsurface flaws: ≥0.1mm depth
Inspection Speed: 100mm²/sec (adjustable scan density)
Lighting System:
- UV excitation (365nm) for micro-crack highlighting
- Cross-polarized lighting for stress visualization

Target Applications

Metal Components: Engine blocks, turbine blades
Ceramics: Insulators, biomedical implants
Composite Materials: Aerospace structures, pressure vessels

Advanced Detection Modes

Technology	Crack Type Detected	Depth Penetration
UV Fluorescence	Surface-breaking	10μm
Lock-In Thermography	Subsurface	2mm
Digital Image Correlation	Stress-induced micro-cracks	N/A (surface strain)

Smart Features

→ 3D Crack Mapping – Quantifies length/depth/orientation
→ Self-Learning Database – Improves detection for new materials
→ Predictive Maintenance – Tracks crack propagation over time
