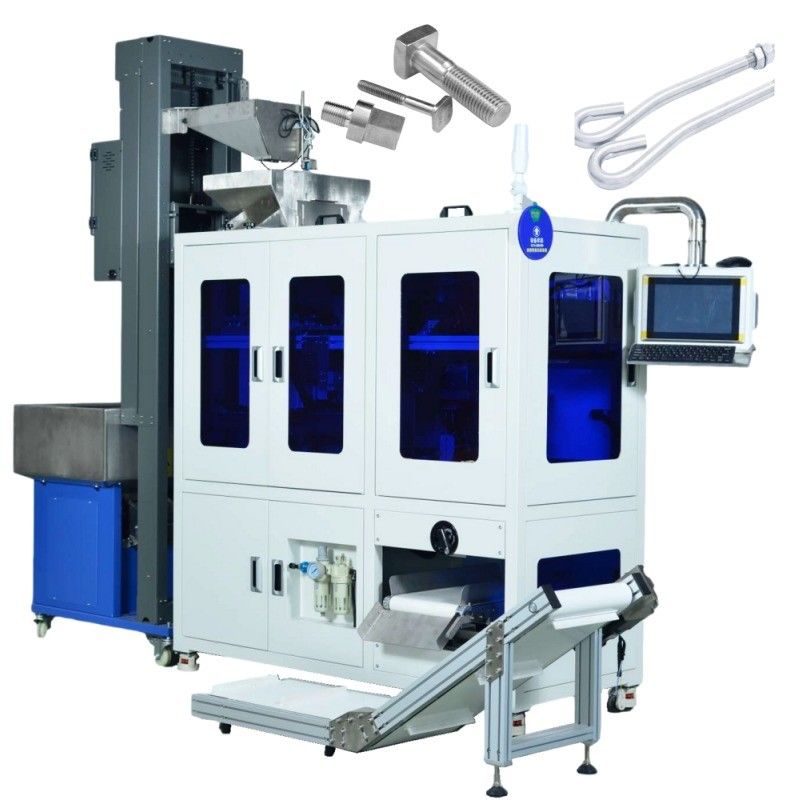

Upgrade Fastener Packaging Process All In One Counting And Visual System

Product Details

Place of Origin: Dongguan,China

Brand Name: DGAX

Certification: CE

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Contact Us

Packaging Details: Foam inner+ outsidewooden case

Delivery Time: 15-35days

Payment Terms: T/T

Supply Ability: 100sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Counting And Visual System, All In One Counting Visual System, Fastener Visual Counting Packing Machine


Production Capacity:	5bag/min	Weight (KG):	300
Function:	FILLING, Wrapping, Labeling, Sealing, Counting, Feeding	Application:	Food, Machinery & Hardware
Packaging Type:	Cartons, Bags	Packaging Material:	Plastic, PE Film
Automatic Grade:	Automatic	Driven Type:	Electric
Voltage:	220V/50HZ	Dimension(LWH):	265724271864mm
Warranty:	1 Year	Key Selling Points:	High-accuracy
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Core Components:	Motor, PLC, Cylinder	Packing Speed:	4-6 Bags/min
Efficiency:	8000-10000pcs/min	Detectabie Size:	2-50mm
Technical Precision:	No Negative Deviation	Weight:	300kg
Type:	Multi-Function Packaging Machine	Applicable Industries:	Building Material Shops, Manufacturing Plant, Retail, Printing Shops, Construction Works
Showroom Location:	Germany, Viet Nam, Russia, Japan	Condition:	New
Warranty Of Core Components:	1 Year	Function:	Weighing,counting,filling,packing,sealing,labeling...
Application:	Hardware Fastener,screw,bolt,nut,washer,zipper Head	Packaging Type:	Bag/box/carton
Power Supply:	AC220V±10% 50HZ/60HZ	Detectabie Size:	5-50mm
Core Components:	Servo Motor, PLC, Cylinder	Core Components:	Servo Motor, PLC, Cylinder
Accuracy:	0.03%,no Negative Error

Production Capacity:	5bag/min
Weight (KG):	300
Function:	FILLING, Wrapping, Labeling, Sealing, Counting, Feeding
Application:	Food, Machinery & Hardware
Packaging Type:	Cartons, Bags
Packaging Material:	Plastic, PE Film
Automatic Grade:	Automatic
Driven Type:	Electric
Voltage:	220V/50HZ
Dimension(LWH):	265724271864mm
Warranty:	1 Year
Key Selling Points:	High-accuracy
Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided
Core Components:	Motor, PLC, Cylinder
Packing Speed:	4-6 Bags/min
Efficiency:	8000-10000pcs/min
Detectabie Size:	2-50mm
Technical Precision:	No Negative Deviation
Weight:	300kg
Type:	Multi-Function Packaging Machine
Applicable Industries:	Building Material Shops, Manufacturing Plant, Retail, Printing Shops, Construction Works
Showroom Location:	Germany, Viet Nam, Russia, Japan
Condition:	New
Warranty Of Core Components:	1 Year
Function:	Weighing,counting,filling,packing,sealing,labeling...
Application:	Hardware Fastener,screw,bolt,nut,washer,zipper Head
Packaging Type:	Bag/box/carton
Power Supply:	AC220V±10% 50HZ/60HZ
Detectabie Size:	5-50mm
Core Components:	Servo Motor, PLC, Cylinder
Core Components:	Servo Motor, PLC, Cylinder
Accuracy:	0.03%,no Negative Error

Product Description

Product Description and Parameters

Specification Parameter

Model	AX-VPY32
Detection product	rubber,O-ring,plastic etc.
Detection Size	8-50mm
Bag size	150-450mm
Efficiency	8000-10000pcs/min
Counting accuracy	0.03%,only positive error
Packaging Material	PE Film material
Power requirements	AC220V±10% 50HZ/60HZ

Principle of visual counting packing machine

High speed CCD image head,the program calculates the product area and then reflects the product on the display screen. After reaching the preset quantity,it will automatically stop blanking and start the packaging machine.The control Precision error is within 0.03%. The speed depends on the size of the product.

Machine Detail

CCD camera counting

We use CCD camera to check quantity of the products to avoid errors which by weighing machine.

Japanese brand "TOSHIBA" camera.

Counting in real time.

High accuracy! Hign speed!

Touch control screen

Support multi-language touch system.

More than thousands of counting items can be kept on computer,with one-key to switch items quickly.

Data traceability,counting record can be download directly.

Multiple channel

Mulitiple channel sending material to seperate material smoothly and better for visual counting.
Good for product appearance requirements.
Won't damage product.
Double channel sending material,
Counting and complement at same time.

PE film packing material

We use PE film packing material to pack products. More economical and environmental. Roll material,making bags in real time. Length and width can be adjusted flexible.

Applicable Industry

The production line covers a wide ranged of hardware,fasterners,plastic rubber,sealing rings,3C precision small screws,small metal parts,5G terminals,auto parts,electronic components,special-shaped parts,toy parts,home appliances,lock parts,lighting accessories,aviation accessories,sports and fitness equipment and other different products.

Packing Sample

Adavantages

Visual counting packaging machine adavantages

1.Vision points-solving large errors in single weight of material.

2.High-speed imaging:8000*10000pcs/min.

3.High precision:accurancy up to 0.03%,no negative deviation(reduce customer complains).

4.Computer data can be stored in thousands of product items quickly.

5.Quickly switch materials with one key,ready-to-use.

6.Convenient start up and easy operation.

7.Independent production and quality can be controled.

8.It can be connected with ERP or MES system and product information can be traced.

9.High speed image retrieval,whole heap counting and logical distribution,which are based on high speed vision technology.

Intelligence:

With powerful learning functions,the machine can automatically recognize the particle object,and can be easily accessed and used after slight manual adjustments and save.

Precision:

Precision:With leading high precision in the field of industrial product.The procision of silver contact products can even reach over 99.95%

High-speed:

High speed for counting particles.The efficiency of counting small particles of materials(such as shirt buttons,silver
contacts,phone screws,ect.)can reach up to 30000pcs/min with accurate counting.

Flexible:

With one click cleaning and quick swithching of product items,suitbale for multi variety and small batch production of granular packaging forms in today's industrial production environment.

Company Profile

Ax-Pack

Ax-Pack is a main manufacturer of high-speed precise counting and packaging equipment based in China.We base in Dongguan city,near
Guangzhou and Shenzhen,with two factories which has about 7200 sauare meters.With 8 years development in the packing industry.We
commit to research and development,manufacturing,production,has a wealth of packaging intelligent system integration solutions
experience. Our solutions can be optimized for diffierent customer requirements and environments.

Business Purpose

Enhance corporate culture,showcase my business style.

Improve business management,extend brand connotation.

Establish a sound marketing system to ensure sustainable development.

Philosophy

Customer oriented and marketing centered. Using brand management as the operating model.

Business positioning

Focusing on products,achieving diversified brand management and establishing brand image.

Our Workshop

Customer Photos

Optional Series

Certifications

FAQ

Q:Are you a factory or trading company?
A:We are an manufacture and trade integration company.

Q:Where is your factory and how can we visit you?

A:We are located in Dongguan,near Guangzhou and Shenzhen,only 1hour from airport.

Q:What's your product range?
A:Suitable for counting and packing of various hardware,plastic, and electronic components.

Q:What's the service and guarantee can you offer?
A:One year guarantee for main parts and replacement of machine, free technical support for lifelong.

Q:Why we should choose your company?
A:We are professional in counting and packing machines for 7 years, we have lots of customer case and solutions for different product lines.

After-Sales Service
1.Online Instruction, We open online services, as long as your equipment fails, our engineers will be the first time for one-to-one troubleshooting.
2.The warranty would be one year. The damaged one (not include the part which is made damaged by man) can be changed by the supplier, but the demand-side needs to burden the transportation fee.
3.The supplier will provide the spare parts of the machine and support for technology for the good.
4.Technical support for lifelong, support parts can be customized brand.

Remark: please confirm with our sales-person about the final price.
