products

Home > products > Visual Counting Packing Machine > Automatic Screw Counting Machine AX-WLDC-T25 for Small Vacuumable Components

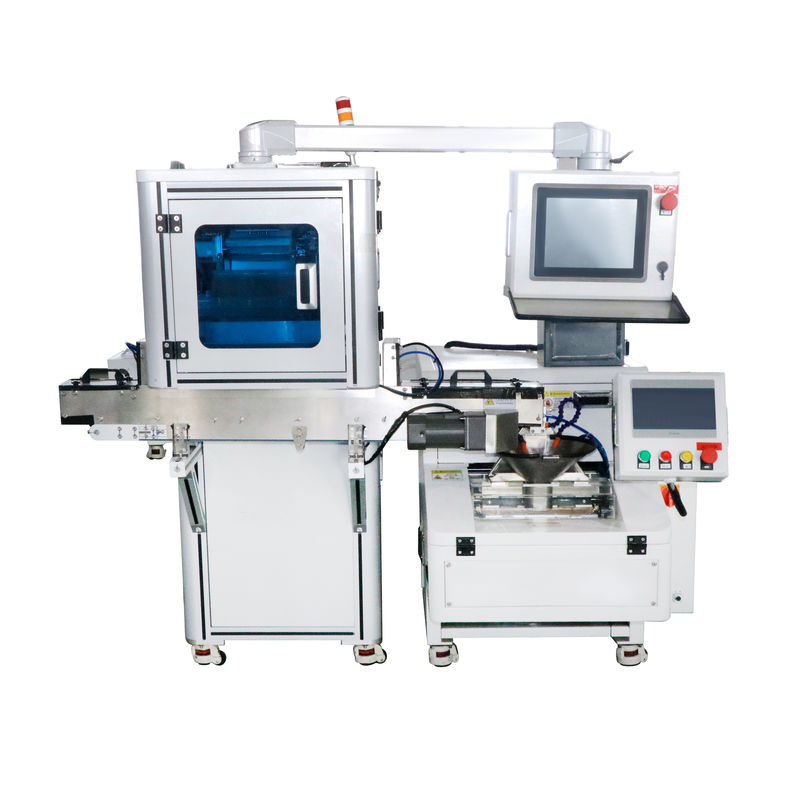

Automatic Screw Counting Machine AX-WLDC-T25 for Small Vacuumable Components

Product Details

Place of Origin: Dongguan,China

Brand Name: DGAX

Certification: CE

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Contact Us

Packaging Details: Foam inner+ outsidewooden case

Delivery Time: 15-35days

Payment Terms: T/T

Supply Ability: 100sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Automatic Screw Counting Machine, Vacuumable Components Screw Counting Machine, 5bag/min Screw Counting Machine


Production Capacity:	5bag/min, 6bag/min	Weight (KG):	250
Function:	Weighing,counting,filling,packing,sealing,labeling...	Application:	Hardware Fastener,screw,bolt,nut,washer,zipper Head
Packaging Type:	Bag/box/carton	Packaging Material:	Plastic, PE Film
Automatic Grade:	Automatic	Driven Type:	Electric
Voltage:	220V,50/60Hz	Dimension(LWH):	159715271702
Warranty:	1 Year	Key Selling Points:	High-accuracy
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Core Components:	Servo Motor, PLC, Cylinder	Product Name:	Packing Machine
Machine Type:	Automatic Counting Packing Machine	Packing Speed:	4-6 Bags/min
Bag Type:	PE Film	Power:	220±50%
After Warranty Service:	1 Year Warranty	Packing Material:	Top And Bottom Sealing
Advantage:	Damage Prevention,collision Prevention	Main Function:	Counting And Packaging
Type:	Multi-Function Packaging Machine	Applicable Industries:	Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Construction Works , Food & Beverage Shops, Other
Showroom Location:	Germany, Viet Nam, Russia, Japan	Condition:	New
Warranty Of Core Components:	1 Year	Power Supply:	AC220V±10% 50HZ/60HZ
Efficiency:	8000-10000pcs/min	Detectabie Size:	5-50mm
Accuracy:	0.03%,no Negative Error

Production Capacity:	5bag/min, 6bag/min
Weight (KG):	250
Function:	Weighing,counting,filling,packing,sealing,labeling...
Application:	Hardware Fastener,screw,bolt,nut,washer,zipper Head
Packaging Type:	Bag/box/carton
Packaging Material:	Plastic, PE Film
Automatic Grade:	Automatic
Driven Type:	Electric
Voltage:	220V,50/60Hz
Dimension(LWH):	159715271702
Warranty:	1 Year
Key Selling Points:	High-accuracy
Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided
Core Components:	Servo Motor, PLC, Cylinder
Product Name:	Packing Machine
Machine Type:	Automatic Counting Packing Machine
Packing Speed:	4-6 Bags/min
Bag Type:	PE Film
Power:	220±50%
After Warranty Service:	1 Year Warranty
Packing Material:	Top And Bottom Sealing
Advantage:	Damage Prevention,collision Prevention
Main Function:	Counting And Packaging
Type:	Multi-Function Packaging Machine
Applicable Industries:	Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Construction Works , Food & Beverage Shops, Other
Showroom Location:	Germany, Viet Nam, Russia, Japan
Condition:	New
Warranty Of Core Components:	1 Year
Power Supply:	AC220V±10% 50HZ/60HZ
Efficiency:	8000-10000pcs/min
Detectabie Size:	5-50mm
Accuracy:	0.03%,no Negative Error

Product Description

Product Description and Parameters

Specification Parameter

Model	AX-WLDC-T25
Detection product	fastener,3C precision smell screws,smell hardware etc.
Detection Size	2-50mm
Bag size	150-450mm
Efficiency	8000-10000pcs/min
Counting accuracy	0.03%,only positive error
Packaging Material	PE Film material
Power requirements	AC220V±50% 50HZ/60HZ

Principle of visual counting packing machine

High speed CCD image head,the program calculates the product area and then reflects the product on the display screen. After reaching the preset quantity,it will automatically stop blanking and start the packaging machine.The control Precision error is within 0.03%. The speed depends on the size of the product.

Machine Detail

CCD camera counting

We use CCD camera to check quantity of the products to avoid errors which by weighing machine.

Japanese brand "TOSHIBA" camera.

Counting in real time.

High accuracy! Hign speed!

Touch control screen

Support multi-language touch system.

More than thousands of counting items can be kept on computer,with one-key to switch items quickly.

Data traceability,counting record can be download directly.

Multiple channel

Mulitiple channel sending material to seperate material smoothly and better for visual counting.
Good for product appearance requirements.
Won't damage product.
Double channel sending material,
Counting and complement at same time.

PE film packing material

We use PE film packing material to pack products. More economical and environmental. Roll material,making bags in real time. Length and width can be adjusted flexible.

Applicable Industry

The production line covers a wide ranged of hardware,fasterners,plastic rubber,sealing rings,3C precision small screws,small metal parts,5G terminals,auto parts,electronic components,special-shaped parts,toy parts,home appliances,lock parts,lighting accessories,aviation accessories,sports and fitness equipment and other different products.

Packing Sample

Adavantages

Visual counting packaging machine adavantages

1.Vision points-solving large errors in single weight of material.

2.High-speed imaging:8000*10000pcs/min.

3.High precision:accurancy up to 0.03%,no negative deviation(reduce customer complains).

4.Computer data can be stored in thousands of product items quickly.

5.Quickly switch materials with one key,ready-to-use.

6.Convenient start up and easy operation.

7.Independent production and quality can be controled.

8.It can be connected with ERP or MES system and product information can be traced.

9.High speed image retrieval,whole heap counting and logical distribution,which are based on high speed vision technology.

Intelligence:

With powerful learning functions,the machine can automatically recognize the particle object,and can be easily accessed and used after slight manual adjustments and save.

Precision:

Precision:With leading high precision in the field of industrial product.The procision of silver contact products can even reach over 99.95%

High-speed:

High speed for counting particles.The efficiency of counting small particles of materials(such as shirt buttons,silver
contacts,phone screws,ect.)can reach up to 30000pcs/min with accurate counting.

Flexible:

With one click cleaning and quick swithching of product items,suitbale for multi variety and small batch production of granular packaging forms in today's industrial production environment.
