DenT Double Glass Table Vision Inspection System For Grommet Checking Defect

Name: DenT Double Glass Table Vision Inspection System For Grommet Checking Defect
Brand: Dongguan Anxiang Intelligence Equipment Co., Ltd
SKU: DenT
Availability: InStock

Product Details

Place of Origin: Dongguan,China

Brand Name: DGAX

Certification: CE

Model Number: DenT

Document: DENT inspection machine_EN.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Contact Us

Packaging Details: Foam inner+ outside wooden case

Delivery Time: 45-60days

Payment Terms: T/T

Supply Ability: 100sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                Glass Table Vision Inspection System, Double Table Vision Inspection System, Grommet Vision Inspection System


Function:	Products Defect Inspection	Application:	Rubbers, Plastics, PTFE, Hardware
Warranty:	1 Year	Core Components:	Servo Motor, PLC, Cylinder
Power Supply:	AC220V±10% 50HZ/60HZ	Efficiency:	Max 36,000pcs/h (Depends On Size And Material )
System:	Feeding Device 300L	Quantity Of Camera:	4 (Depends On Detection Requirement)

Function:	Products Defect Inspection
Application:	Rubbers, Plastics, PTFE, Hardware
Warranty:	1 Year
Core Components:	Servo Motor, PLC, Cylinder
Power Supply:	AC220V±10% 50HZ/60HZ
Efficiency:	Max 36,000pcs/h (Depends On Size And Material )
System:	Feeding Device 300L
Quantity Of Camera:	4 (Depends On Detection Requirement)

Product Description

High Speed DenT - Double Glass Table Vision Inspection Machine For Grommet Checking Defect

The following aspects should be considered when choosing a suitable visual screening machine:
Product size and shape: Ensure that the detection range and mechanical structure of the screening machine can adapt to the size and shape changes of the product to be inspected. Some visual screening machines can adapt to products of different specifications by replacing the fixture or adjusting the conveying device, and have good versatility; for some special shapes or oversized products, special inspection equipment may need to be customized.
Environmental adaptability: Consider the environmental conditions of the production site, such as temperature, humidity, light, dust, etc. If the environment is harsh, it is necessary to select a visual screening machine with good protection performance to ensure the normal operation and service life of the equipment.

Working Principle of DenT- Dounble glass table visual inspection machine

The system consists of two workstations which contains inner side and outer side, each with six 2-megapixel or 5-megapixel color cameras distributed at a 60-degree Angle. Each camera uses a low-distortion lens. In addition, the system also features two sets of color lighting systems distributed above and below. It has an independently digitally adjustable lighting system to abnormalities on the basis of detecting the inner and outer defects.

Equipment Advantages of DenT- Double glass table visual inspection machine

Dent is an optical inspection device for dimensional and surface defected detection of round and shaped parts. It can detect rubber, plastic, PTFT and other materials with high precision within its detection range. These materials are tested for defects at a series of inspection using high-precision industrial cameras. The images obtained by the camera are transferred to the computer managed by the real-time system for image processing without data loss and interference: the user can interact with the operating system in a simple and intuitive way through the operating interface. The detection system is stable, reliable, efficient and high-speed.

Technical Parameters of DenT- Double glass table visual inspection machine

Technical Parameter	35	60	90
Material	Rubbers, Plastics, PTFE, Hardware
Color	Any colour
Minimum Outside Diameter of Inspected Material (mm)	5	5	20
Maximum Outside Diameter of Inspected Material (mm)	35	60	90
Minimum Thickness of Inspected Material (mm)	1	1	1
Maximum Thickness of Inspected Material (mm)	9	9	9
Efficiency	Max 36,000pcs/h (Depends on size and material )
System	Feeding device 300L

Measurement Station	35	60	90
Camera	Black&White	Black&White	Black&White
Inspected Range (mm)	Φ54	Φ71	Φ102
Maximum height Inspected (mm)	10	10	10
Image Resolution (mm)	0.001	0.001	0.001
Measure Precision (mm)	+/-0.008	+/-0.012	+/-0.012
Repeatability (mm)	+/-0.005	+/-0.008	+/-0.008

Surface Workstation	35	60	90
Camera	Full color	Full color	Full color
Quantity of Camera	4	4	4
Focal length adjustment	Electricity	Electricity	Electricity

High Measure and Inspected station	35	60	90
Inspected Range (mm)	25	25	25
Image Resolution (mm)	0.001	0.001	0.001
Measure Precision (mm)	±0.003	±0.003	±0.003
Repeatability (mm)	±0.005	±0.005	±0.005
Minimum Inspected inside diameter (mm)	10	10	10

Outside Inspected Station	35	60	90
Camera	Full Color	Full Color	Full Color
Single Camera Inspected range(mm)	29	48	48
Image Resolution (mm/px)	0.012	0.020	0.020
Minimum Inspected Defective area(mm)	0.036*0.036	0.060*0.060	0.060*0.060

Inside Inspected Station	35	60	90
Camera	Full Color	Full Color	Full Color
Single Camera Inspected range(mm)	29	48	58
Image Resolution (mm/px)	0.010	0.019	0.019
Minimum Inspected Defective area(mm)	0.030*0.030	0.030*0.030	0.030*0.030

Application of DenT- Double glass table visual inspection machine

Electronic components, precision injection molding, hardware fasteners,

sealing rings,rubber silicone,industrial silver contacts, etc.

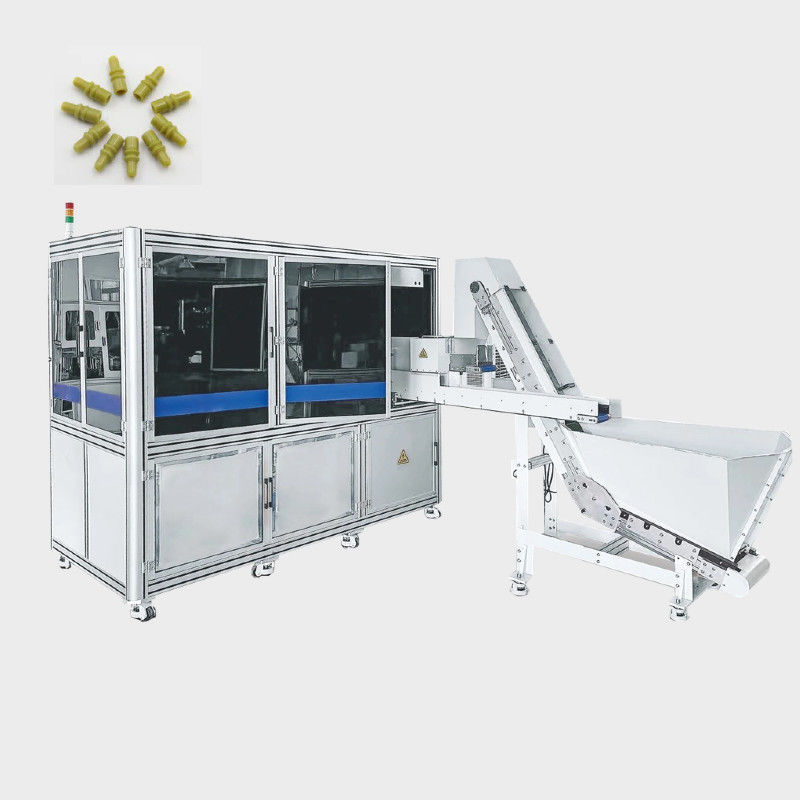

Feature Picture of DenT- Double glass table visual inspection machine for industry products

DenT Double Glass Table Vision Inspection System For Grommet Checking Defect 0
