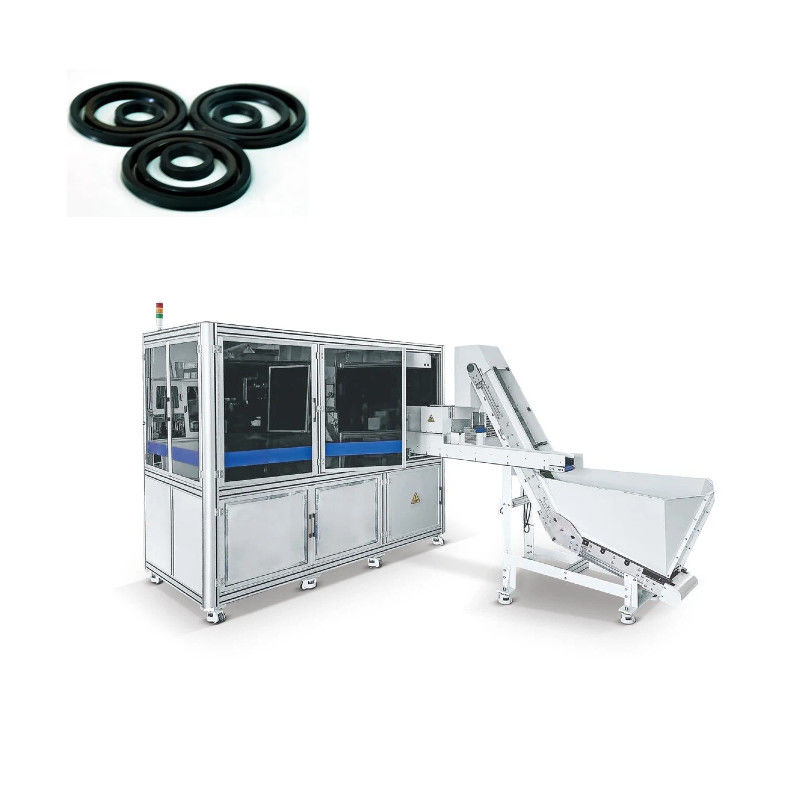

CCD Checking High Speed DenT Vision Inspection Machine for Rubber Component

CCD Checking High Speed DenT Vision Inspection Machine for Rubber Component

Multifunctional testing
Multiple features of products can be tested at the same time. For example, in the inspection of automotive parts, the visual inspection machine can not only check the dimensional accuracy of the parts, but also detect the roughness, texture and clarity of the logo on the surface. Through a single inspection, multi-dimensional quality information of the product can be obtained, saving a lot of time and labor costs for the company.

Working Principle of DenT- Dounble glass table visual inspection machine

The system consists of two workstations which contains inner side and outer side, each with six 2-megapixel or 5-megapixel color cameras distributed at a 60-degree Angle. Each camera uses a low-distortion lens. In addition, the system also features two sets of color lighting systems distributed above and below. It has an independently digitally adjustable lighting system to abnormalities on the basis of detecting the inner and outer defects.

Equipment Advantages of DenT- Double glass table visual inspection machine

Dent is an optical inspection device for dimensional and surface defected detection of round and shaped parts. It can detect rubber, plastic, PTFT and other materials with high precision within its detection range. These materials are tested for defects at a series of inspection using high-precision industrial cameras. The images obtained by the camera are transferred to the computer managed by the real-time system for image processing without data loss and interference: the user can interact with the operating system in a simple and intuitive way through the operating interface. The detection system is stable, reliable, efficient and high-speed.

Technical Parameters of DenT- Double glass table visual inspection machine

Application of DenT- Double glass table visual inspection machine

Electronic components, precision injection molding, hardware fasteners,

sealing rings,rubber silicone,industrial silver contacts, etc.

Feature Picture of DenT- Double glass table visual inspection machine for industry products
