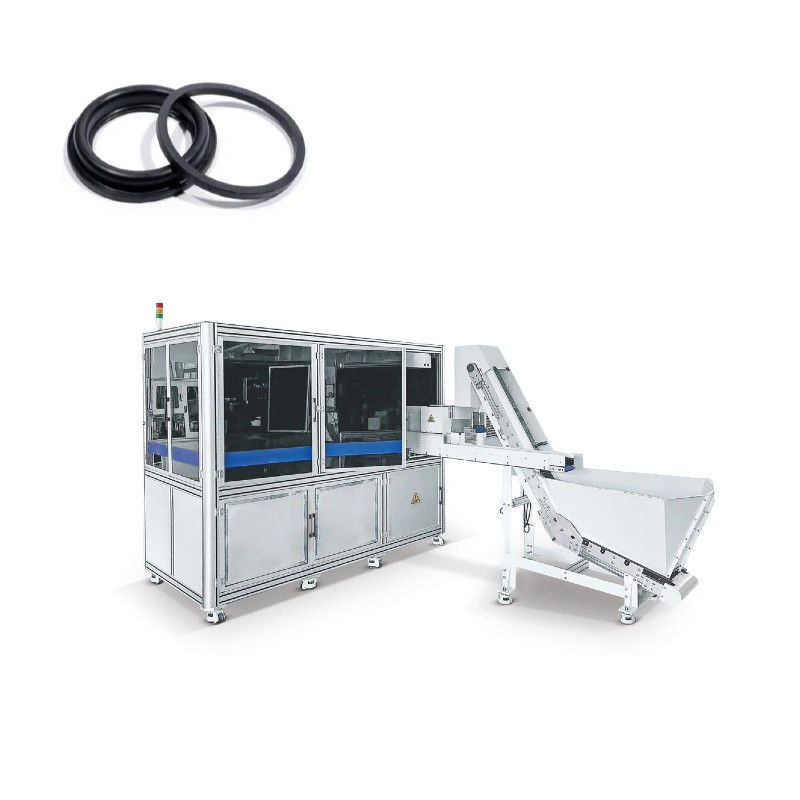

Industrial Products Visual Inspection Machine With CCD Image Measuring

Industrial Products Visual Inspection Machine With CCD Image Measuring

Data recording and analysis
The visual inspection machine can record the inspection data of each product, including whether it is qualified, the specific defect type and location, etc. This data can be used for subsequent quality traceability and statistical analysis. By analyzing a large amount of inspection data, enterprises can understand the changing trend of product quality, find out the quality problems and potential risks in the production process, and optimize the production process and quality control system in a targeted manner.

Working Principle of DenT- Dounble glass table visual inspection machine

The system consists of two workstations which contains inner side and outer side, each with six 2-megapixel or 5-megapixel color cameras distributed at a 60-degree Angle. Each camera uses a low-distortion lens. In addition, the system also features two sets of color lighting systems distributed above and below. It has an independently digitally adjustable lighting system to abnormalities on the basis of detecting the inner and outer defects.

Equipment Advantages of DenT- Double glass table visual inspection machine

Dent is an optical inspection device for dimensional and surface defected detection of round and shaped parts. It can detect rubber, plastic, PTFT and other materials with high precision within its detection range. These materials are tested for defects at a series of inspection using high-precision industrial cameras. The images obtained by the camera are transferred to the computer managed by the real-time system for image processing without data loss and interference: the user can interact with the operating system in a simple and intuitive way through the operating interface. The detection system is stable, reliable, efficient and high-speed.

Technical Parameters of DenT- Double glass table visual inspection machine

Application of DenT- Double glass table visual inspection machine

Electronic components, precision injection molding, hardware fasteners,

sealing rings,rubber silicone,industrial silver contacts, etc.

Feature Picture of DenT- Double glass table visual inspection machine for industry products
