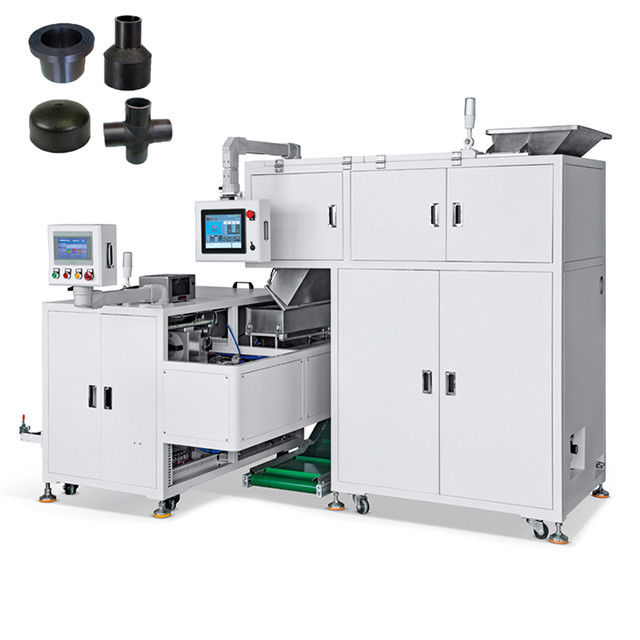

Multi Function Vision Counting Packing Machine For Pipes Fitting Packing

Name: Multi Function Vision Counting Packing Machine For Pipes Fitting Packing
Brand: Dongguan Anxiang Intelligence Equipment Co., Ltd
SKU: AX-HT300
Availability: InStock

Product Details

Place of Origin: Dongguan,China

Brand Name: DGAX

Certification: CE

Model Number: AX-HT300

Document: Visual counting packing mac...ne.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Contact Us

Packaging Details: Foam inner+ outside wooden case

Delivery Time: 15-35days

Payment Terms: T/T

Supply Ability: 100sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                pipes fitting packing machine, multi function vision counting packing machine, Multi Function pipe fittings packing machine


Function:	Counting,filling,packing,sealing,labeling...	Application:	Plastic,plastic Components
Automatic Grade:	Automatic	Voltage:	AC220V±10% 50HZ/60HZ
Warranty:	1 Year	Core Components:	Servo Motor, PLC, Cylinder
After-sales Service Provided:	Video Technical Support, Field Installation, Commissioning And Training, Online Support, Field Maintenance And Repair Service, Free Spare Parts, 1 Years	Efficiency:	10000-20000pcs/min
Detectabie Size:	5-50mm	Accuracy:	0.03%,no Negative Error

Function:	Counting,filling,packing,sealing,labeling...
Application:	Plastic,plastic Components
Automatic Grade:	Automatic
Voltage:	AC220V±10% 50HZ/60HZ
Warranty:	1 Year
Core Components:	Servo Motor, PLC, Cylinder
After-sales Service Provided:	Video Technical Support, Field Installation, Commissioning And Training, Online Support, Field Maintenance And Repair Service, Free Spare Parts, 1 Years
Efficiency:	10000-20000pcs/min
Detectabie Size:	5-50mm
Accuracy:	0.03%,no Negative Error

Product Description

Features Overview of Good quality multifunction machinery vision counting package machine for pipes fitting packing

Sepecification Parameter

Model	AX-HT300
Detection Size	5-50mm
Bag size	150-450mm
Efficiency	10000-20000pcs/min
Counting accuracy	0.03%,only positive error
Packaging Material	PE Film material
Power requirements	AC220V±10% 50HZ/60HZ

Princeple

High speed CCD image head,the program calculates the product area and then reflects the product on the display screen. After reaching the preset quantity,it will automatically stop blanking and start the packaging machine.The control Precision error is within 0.03%. The speed depends on the size of the product.

Applicable Industry

Applicable to the electronics industry, food industry, pharmaceutical industry, hardware industry, toy industry, cosmetics industry, etc.

Machine Detail

CCD camera counting

We use CCD camera to check quantity of the products to avoid errors which by weighing machine.

Japanese brand "TOSHIBA" camera.

Counting in real time.

High accuracy! Hign speed!

CCD camera counting

Touch control screen

Multiple channel for accurate counting

PE film economic packing material

Adavantages

Visual counting packaging machine adavantages

1.Vision points-solving large errors in single weight of material.
2.High precision:accurancy up to 0.03%,no negative deviation(reduce customer complains).
3.Computer data can be stored in thousands of product items quickly.
4.Quick material change,ready-to-use.
5.Independent production and quality can be controled.

Intelligence:

With powerful learning functions,the machine can automatically recognize the particle object,and can be easily accessed and used after slight manual adjustments and save.

Precision:

Precision:With leading high precision in the field of industrial product.The procision of silver contact products can even reach over 99.95%

High-speed:

High speed for counting particles.The efficiency of counting small particles of materials(such as shirt buttons,silver
contacts,phone screws,ect.)can reach up to 30000pcs/min with accurate counting.

Flexible:

With one click cleaning and quick swithching of product items,suitbale for multi variety and small batch production of granular packaging forms in today's industrial production environmen

Optional Series

Company Introduction

We are an integrated manufacturing and trading company located in Dongguan, close to Guangzhou and Shenzhen and only 1 hour drive from the airport. Applicable to the counting and packaging of various hardware, plastic and electronic components, the main parts of the machine and replacement warranty for one year, lifetime free technical support. We have 7 years of professional experience in counting and packaging machines and we have a large number of customer cases and solutions for different product lines.

After-Sales Service
1.Online Instruction, We open online services, as long as your equipment fails, our engineers will be the first time for one-to-one troubleshooting.
2.The warranty would be one year. The damaged one (not include the part which is made damaged by man) can be changed by the supplier, but the demand-side needs to burden the transportation fee.
3.The supplier will provide the spare parts of the machine and support for technology for the good.
4.Technical support for lifelong, support parts can be customized brand.

Remark: please confirm with our sales-person about the final price.
